DS-12

Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.
The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.
The DS-12 offers concept of individual feature setup based upon the requirements of each customer. The transmitter is available in a basic configuration that will meet the needs of most users for most model
types. For individual setting of the transmitter there is a configurator available at swshop.jetimodel.com. After the simple registration of your transmitter it is possible to select additional features based upon your individual demands.

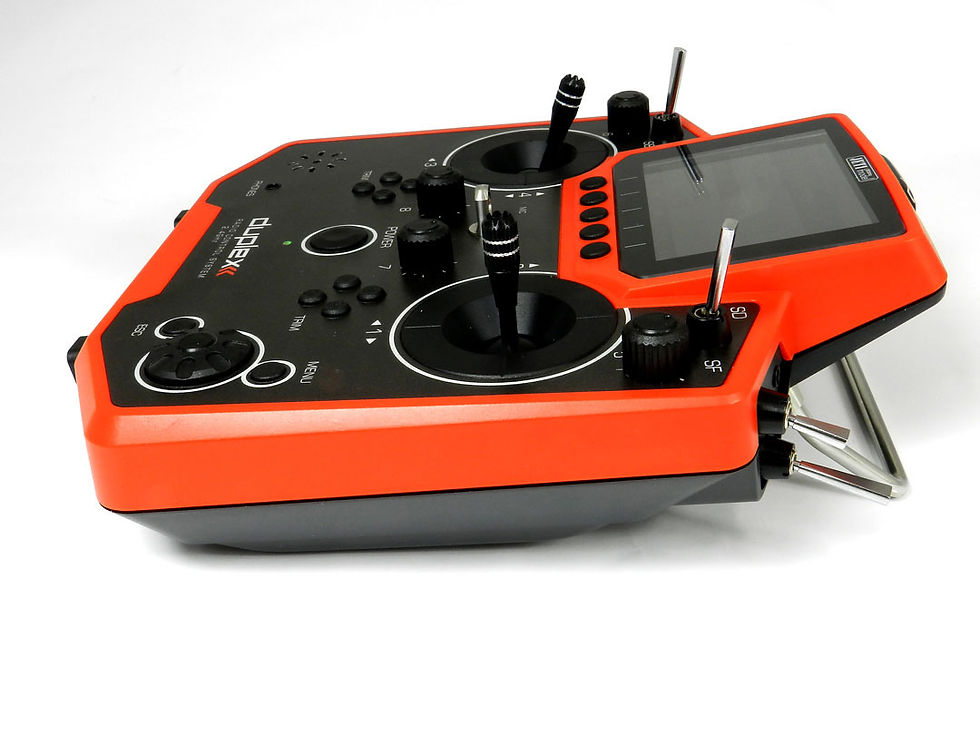

Transmitter Duplex DS-12 EX Multimod Red (ɪ)

SKU: JDEX-TDS12-MMR
₪6,100.00Price
  • Weight [g] 700
    Transmitter Aluminum Case No
    Transmitter Battery Pack (mAh) 6200
    Backlit LCD 3.5" 320x240px color, high contrast
    Memory, SD Card 8GB
    Gimbal Hall Sensors/Vibration Yes / Yes (not included with the joystick)
    Stick Resolution 4096
    Transmitter Frame Plastic
    Gimbals & Buttons Plastic
    Number of antenas 2.4GHz 2
    RF modules 2.4GHz 1
    Control Inputs (Stick/Switch/Knob) 14
    Dimensions [mm] 194 x 215 x 55
    Output Power - 2.4GHz [mW] 100
    Operational temperature [°C] -10 to +60
    Channels 8 (up to 16)
    Control Inputs (Stick/Switch/Knob) 14
    Backup Module (upgradable)
    Flight Modes 3 (up to 6)
    Free Mixes 5 (up to 20)
    Data Graphs (upgradable)
    Audio Player (upgradable)
    Logical Switches 0 (up to 16)
    Number of Remote Commands 0 (up to 16)
    Servo Sequencer 0 (up to 6)
    Timers 3 (up to 10)
    Displayed Telemetry Values 10 (up to 40)
    Sound on Events 5 (up to 20)
    Alarms 10 (up to 40)
    Vibration Alarms (upgradable)
    Voice Output (upgradable)
    MP3 Active
    Microphone Active
    Gyro Settings 1 (up to 3)
    Servo Balancer (upgradable)
    Function Curves (upgradable)
    Throttle Limiter (heli) (upgradable)
    Variometer (upgradable)
    Flight Mode Trim Active
    Data Stream Logging 80
    Telemetry Controls 0 (up to 16)
    Voice Commands 0 (up to 15)
    Lua Apps 10
    Ditex Servo Telemetry Active
    Double Path (upgradable)
    Accelerometer (upgradable)
