DC/DS Transmitters

Precise RC transmitters benefit from all of the features that the Duplex 2,4GHz EX system can offer.

The transmitters contain an advanced user interface that allows you almost unlimited programming. On-line and off-line telemetry are available as well as alarms, custom audio playback etc.

The design goals were maximum utility, durability, and reliablity of their mechanical parts along with simple handling. The metal case, with its chemically resistant finish, provides maximum protection for the interior components. The straightforward case shape makes servicing easy. The control gimbals, ball bearing equipped with their magnetic Hall sensors are another revolutionary design concept used to make the DC/DS among the world’s most advanced R/C systems.

Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.

The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.

The transmitters of the DS series are designed for thumb control.
These transmitters can be placed in a counter for these transmitters.

New special edition DS-12 transmitter has full-metal precise gimbals and full-metal buttons from the top line of DC/DS-24 transmitters. It also has a carbon front panel. This transmitter is in a black color and will be delivered as standard in a DUPLEX plastic case and with an R5L receiver.

Changes of the special edition:
- DS-12 transmitter in purple color
- Full-metal precise gimbals
- Full-metal buttons
- Carbon front panel
- DUPLEX plastic case
- R5L receiver

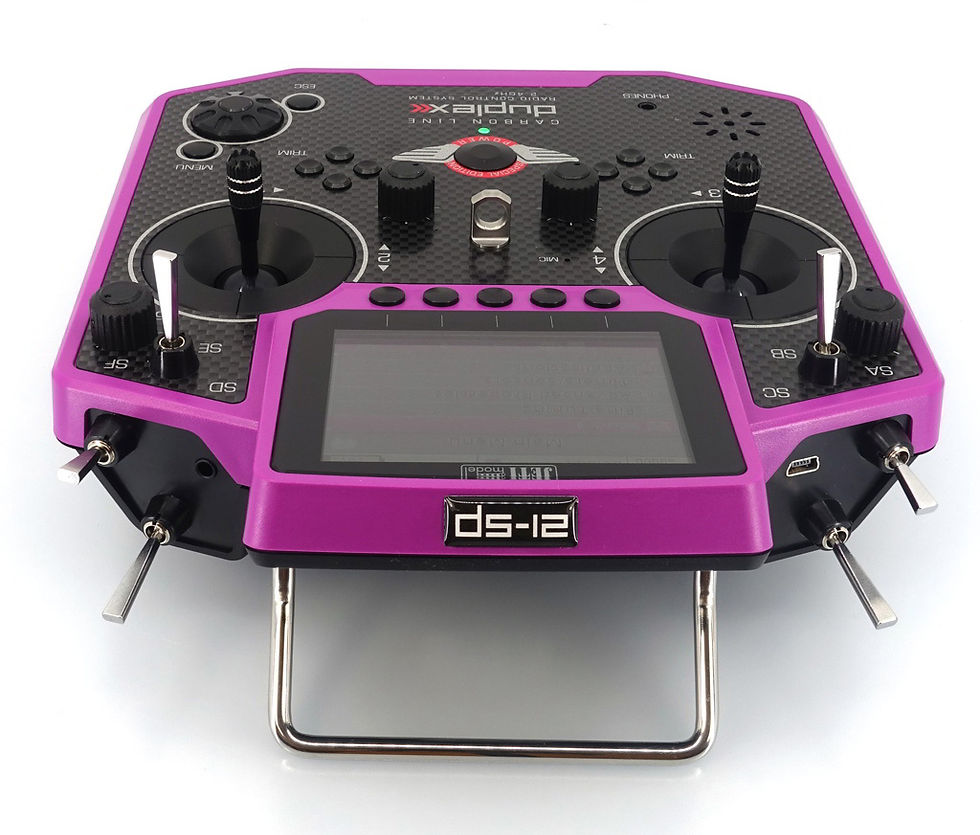

Transmitter Duplex DS-12 Carbon Purple Special Edition (ɪ)

5,500.00 ₪מחיר
  • Weight [g] 700
    Transmitter Aluminum Case No
    Transmitter Battery Pack (mAh) 6200
    Backlit LCD 3.5
    Memory, SD Card 8GB
    Gimbal Hall Sensors/Vibration Yes / Yes (not included with the joystick)
    Stick Resolution 4096
    Transmitter Frame Plastic / Carbon Front Panel
    Gimbals & Buttons Aluminium
    Number of antenas 2.4GHz 2
    RF modules 2.4GHz 1
    Control Inputs (Stick/Switch/Knob) 14
    Dimensions [mm] 194 x 215 x 55
    Output Power - 2.4GHz [mW] 100
    Operational temperature [°C] -10 to +60
    Channels 8 (up to 16)
    Control Inputs (Stick/Switch/Knob) 14
    Backup Module (upgradable)
    Flight Modes 3 (up to 6)
    Free Mixes 5 (up to 20)
    Data Graphs (upgradable)
    Audio Player (upgradable)
    Logical Switches 0 (up to 16)
    Number of Remote Commands 0 (up to 16)
    Servo Sequencer 0 (up to 6)
    Timers 3 (up to 10)
    Displayed Telemetry Values 10 (up to 40)
    Sound on Events 5 (up to 20)
    Alarms 10 (up to 40)
    Vibration Alarms (upgradable)
    Voice Output (upgradable)
    MP3 Active
    Microphone Active
    Gyro Settings 1 (up to 3)
    Servo Balancer (upgradable)
    Function Curves (upgradable)
    Throttle Limiter (heli) (upgradable)
    Variometer (upgradable)
    Flight Mode Trim Active
    Data Stream Logging 80
    Telemetry Controls 0 (up to 16)
    Voice Commands 0 (up to 15)
    Lua Apps 10
    Ditex Servo Telemetry Active
    Double Path (upgradable)
    Accelerometer (upgradable)
